48V 150Ah 51.2V LiFePO4 Golf Cart Battery, 250A BMS, 4000+ Cycles Lithium Battery, Max 12.8kW Power
Lithium iron phosphate (LiFePO4) battery packs have gained popularity as a preferred choice for golf carts due to several compelling reasons. Firstly, LiFePO4 batteries offer a higher energy density compared to traditional lead-acid batteries commonly used in golf carts. This means that they can store more energy in a smaller and lighter package, allowing the golf cart to travel longer distances on a single charge.
Specifiaction of 105Ah and 150Ah batteries :
| Rated voltage | 48V | 48V |
| Capacity (Ah) | 105Ah | 150Ah |
| Battery Energy | 5376Wh | 7680Wh |
| Self-discharge | ≤3% per month at 25 | ≤3% per month at 25 |
| Cycle life | >5000 cycles | >5000 cycles |
| Charge Mode | CC/CV | CC/CV |
| Charge Cut-off Voltage | 58.4V | 58.4V |
| Recommended Charge Current | 10A-50A | 30A-75A |
| Max. Continuous Charge Current | 150A | 150A |
| Max. Continuous Discharge Current | 250A | 250A |
| Max. Pulse Current | 260A 120S | 300A 120S |
| 520A/20S | 520A/20S |
| Discharge Cut-off Voltage | 40V | 40V |
| Communication mode | UART/RS485/CAN | UART/RS485/CAN |
| Storage temperature | 0~45℃ | 0~45℃ |
| Working Environment | 0℃~+55℃(Charge) | 0℃~+55℃(Charge) |
| -20℃~+65℃(Discharge) | -20℃~+65℃(Discharge) |
| Housing Material | Metal case | Metal case |
| Bluetooth 5.0 | Yes | Yes |
| Display Screen | Optional | Yes |
| Touch display | Optional | Optional |
| OEM & ODM | Yes | Yes |
| Dimension (mm) | 385*325*245 | 860*316*217 |
| Weight | 99.20lbs.(45kg) | 163.13lbs.(68kg) |

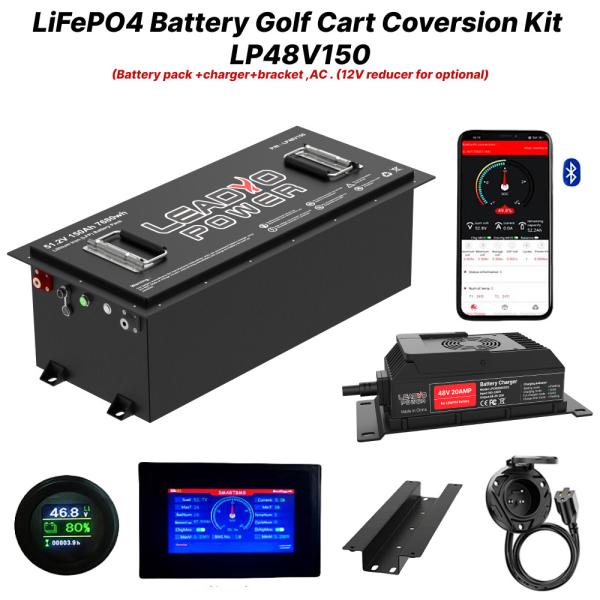

1 X 51.2V 150Ah Battery Pack including round LCD display and Bluetooth (Touch display is optional )
( RS485 or Canbus com can be provided )
1 X Charger 20A
1 X AC Plug
(12V reducer for optional, and mounting brackets can be provided )
FAQ
1. Do you provide OEM/ODM service ?
Yes ,can customized your brand battery
2.Do you have MOQ requests?
NO ,We don't have.
3.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.
5.May i get the golf cart lifepo4 battery with different capacity and voltage ?
Yes,please contact us.
6.How to get a quote?
Please contact us,leadyo@leadyo-battery.com
